The novasens IR502G infrared temperature sensor is suitable due to its precise and high-quality germanium optics
for the detection of small measuring spots and measuring objects over long measuring distances.
• Detection of small measuring spots over large measuring distances
• High quality, moisture-insensitive, germanium optics
• Robust, tough sensor housing
• Compact design, easy to integrate and assemble
The sensor is optionally available in the following variants
(see PDF Datasheet):
• IR502GAC (more…)
• IR502GS
• IR508G
• IR508GS
• IR502GW
Technical data
| Measuring range / field of application | -40°C to + 1000°C Temperature Measurement System novasens 2050 0 – 250 % Hotmelt Control System novasens 2000 |
| Spectral range | 8-14 μm |
| Emissivity correction | 1,0 to 0,1 adjustable on Controller |
| Dimensions | Length 62 mm x 18 mm Diameter with M18 x 1 thread |
| Permissible moisture | 95% not condensing |
| Permissible ambient temperature | -20°C to +50°C |
| Distance to measuring spot | 100mm : 2mm |
| Accuracy | +/- 1% of reading |
| Repeat accuracy | 0,5°C (0-100°C), 1,0°C (over 100°C) |
| Reaction time | 60ms |
| Resolution | 1/10°C |
| Outputs | 0-20mA, 4-20mA, 0-10VDC selectable on controller |
| Weight | 170 Grams (sensing head with 3m cable including plugs) |
| Protection class | IP64 |
| Delivery scope | Sensing head with 3m cable including plugs and mounting screws) |
| Conformity | RoHS-conformity, CE-Sign |
| Article number | 0200231 |
| The sensor works as a part with the complete Infrared Temperature Measuremen System novasens 2050 or the Hotmelt Control System novasens 2000. | |

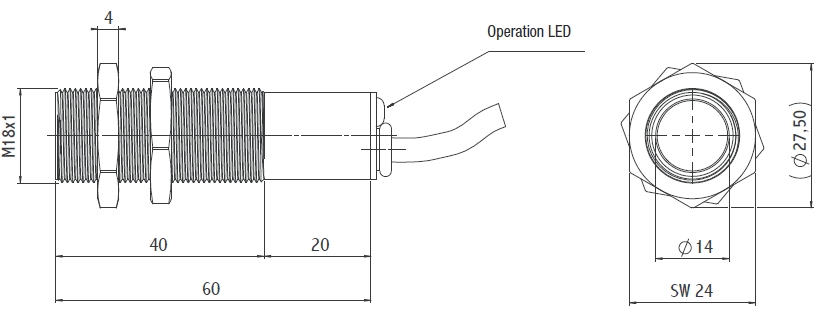

Dimensions
Optical Specifications
