The novasens HighTemp 530 infrared thermometer is a portable high-temperature pyrometer in the short-wave infrared range for non-contact temperature measurement of metals in the measuring range from + 200°C to 2400°C with thermocouple input and double laser for marking the measuring spot.
At a glance
- IR temperature measuring device with input for external thermocouple sensor NiCr-Ni (Type K)
- Measuring range up to 8 meter
- Large temperature measuring range – infrared: +100°C to +2400°C – Thermocouple input: -64°C to +1370 °C
- Coated optics with 100:1 measuring spot Ratio
- Adjustable emissivity 0.10 to 1.00
- With target laser and Display backlight
- HOLD/MAX/MIN/DIF/AVG/LOCK-Function
- Acoustic and visual alarm limit (HI-LOW)
- °C/F-switchable
- Large display: for simultaneous display of measured value as well as max / min or limit values
- Spectral range: 1,1 – 3,7 μm
The novasens HighTemp 530 thermometer is the perfect pyrometer for non-contact temperature measurement in the metal and steel industry.
A High-quality precision optics ensures a measuring range of up to 8 meters and an optical resolution of 100:1. This allows measurement objects to be measured precisely even at a greater distance.
Marking the measuring field with a laser sight:
A double target laser helps you to precisely target and mark the measurement object or measurement spot.
The two laser beams follow the optical infrared beam path of the thermometer and mark the size of the measuring field exactly at every distance.
Typical areas of application of the novasens HighTemp 530 high temperature thermometer due to the high temperature measuring range of up to 2400 ° C are:
- Iron and steel production
- Melting and casting processes
- Forging and metal finishing processes
- Chemical high temperature processes
- Thermoforming processes such as bending, rolling and cutting
Technical data
| Measuring ranges | +200°C to +2400°C (Infrared) -64°C to +1370°C (Thermocouple input) |
| Spectral range | 1,1 – 3,7 μm |
| Emissivity correction | 1,0 to 0,1 adjustable |
| Dimensions | 233 mm length x 207 mm width x 60 mm height |
| Permissible ambient temperature | 0°C to +50°C |
| Distance to measuring spot | 100:1 with target laser |
| Accuracy | +/- 2% of reading (Infrared) +/- 1% of reading (Thermocouple Input) |
| Repeat accuracy | +/- 2% of reading (Infrared) |
| Reaction time | < 1 second |
| Resolution | 0,1 °C (from 1000°C = 1°C) |
| Laser | Class 2 |
| Power supply | 2 x 1,5V AA batteries |
| Battery life | Appr. 40 hours in continuous Operation |
| Weight | 475 Grams |
| Delivery scope | Thermometer, batteries, carrying case |
| Conformity | RoHS-conformity, CE-Sign |
| Article number | 00530 |

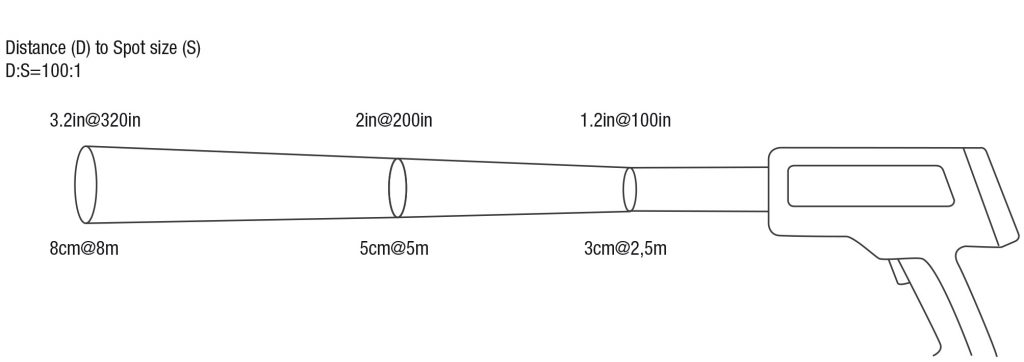

Optical Specifications
