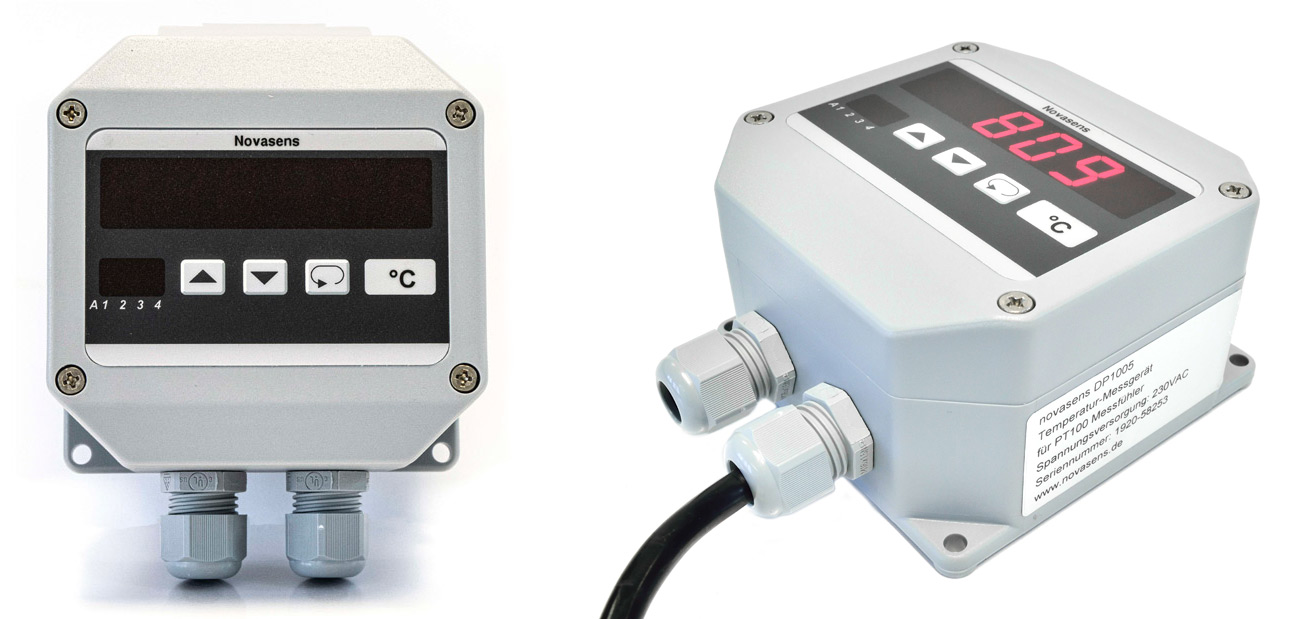

The novasens DP1005 temperature meter is suitable for measuring and displaying temperatures in conjunction with PT100 and PT1000 resistance temperature sensors. Thanks to its robust field housing with protection class IP65, it is also very suitable for use in harsh industrial environments.
The measuring input is galvanically isolated from the auxiliary voltage.
The respective measuring range can be limited to the required measuring span in the configuration level. For devices with an analog output, this is also the area for the analog output.
Simple measurement, monitoring, control and regulation tasks can be mapped very well with this temperature controller.
The most important functions at a glance:
• LED-Display 14,2 mm red
• Measuring input Pt100 -100,0 … 600,0 °C* Pt1000, -50,0 … 200,0 °C
• Max. 2 Alarm Outputs, relay SPDT
• Analog output 0/4 … 20 mA und 0/2 … 10 V DC
• Robust field housing with hinge cover in protection class IP65
• With cable glands 2 x M16x1.5
Technical data
| Power supply | |
| Supply voltage | 230 V AC ±10 %; 115 V AC ±10 %, 24 V AC ±10 % or 24 V DC ±15 % |
| Power consumption | max. 3,5 VA |
| Operating temperature | -20 … +55 °C (erweiterter Temperaturbereich auf Anfrage) |
| CE-Conformity | EN55022, EN60555, IEC61000-4-3/4/5/11/13 |
| Input | |
| Pt100; PT1000 | -100 … 600 °C ; -50 … 200 °C |
| Accuracy | Pt100 or Pt1000 < 0,1% ±2 Digit, max. 100 Ohm line resistance |
| Temperature coefficent | 0,004%/K |
| Display | LED red, 14,2 mm |
| Indicating range | ±9999(0) digit with leading zero suppression |
| Additional Display | LED 2-digit red, 7 mm (parameter and output indicator) |
| Output | |
| Relay | SPDT < 250 V AC < 250 VA < 2 A, < 300 V DC < 50 W < 2A |
| Analog | 0/4 … 20 mA burden 500Ohm ; 0/2 … 10 V burden >500 Ohm , no isolation automatic output changing (burden dependent) |
| Accuracy | 0,1 %; TK 0,01 %/K |
| Case material | Field case polyamid glass fiber reinforced PA6-GF 15/15, frontfoil with polyester |
| Dimensions | 100x100x60mm, see datasheet |
| Weight | max. 450 g |
| Connection | Clamp terminals 0.08 – 1.5 mm² AWG28..AWG14 |
| Protection class | Front IP65, terminals IP20 acc. BGV A3 |
